Katy Ranch Crossing

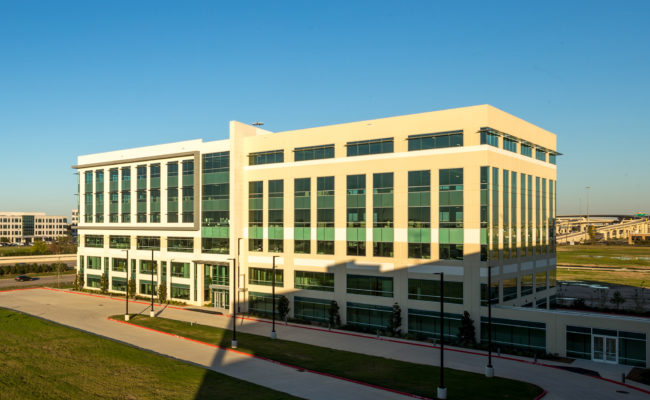

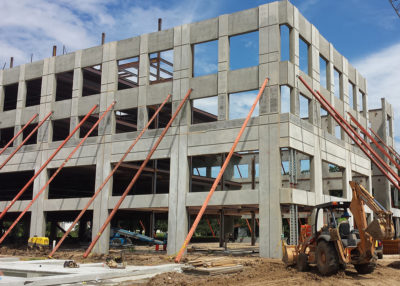

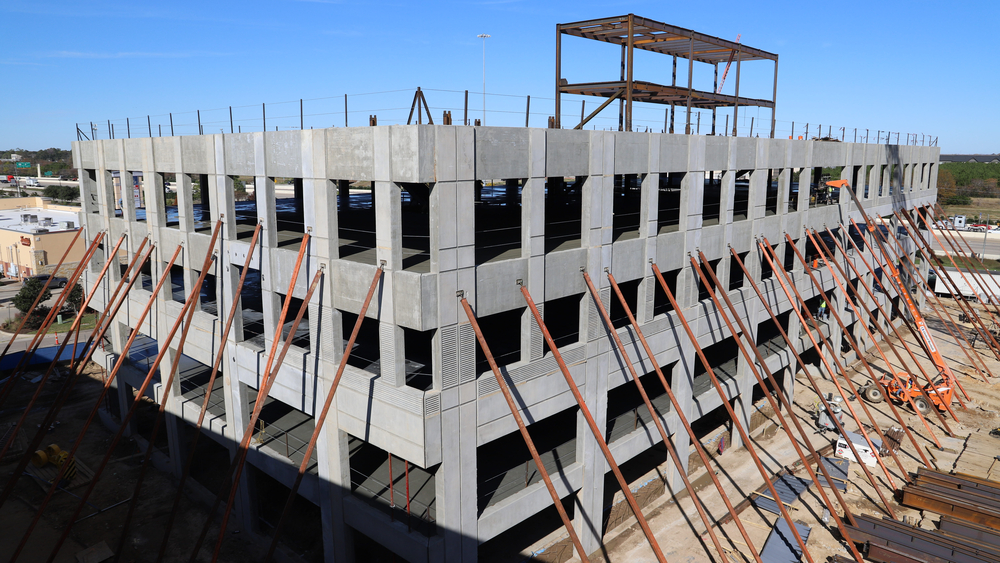

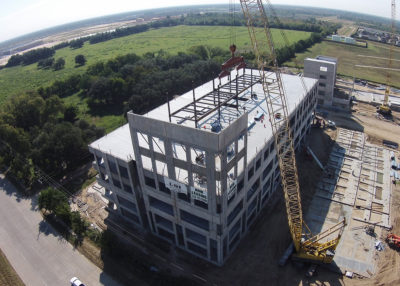

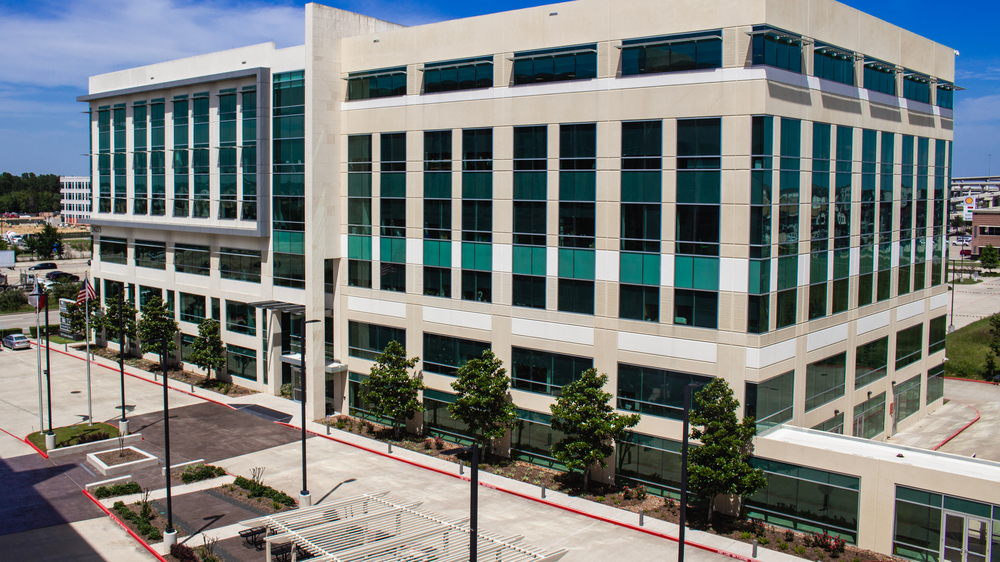

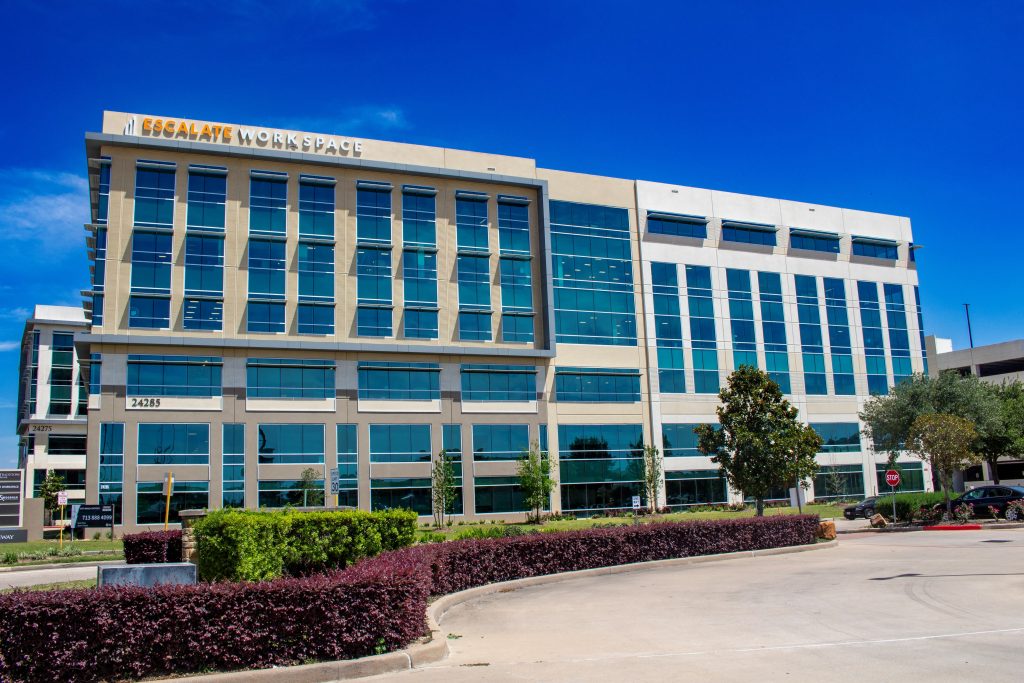

 Katy Ranch Crossing is the first phase of a two-building office development located west of downtown Houston. This six-story, load-bearing tilt-up office building was constructed with a lower four-story panel, and a two-story panel stacked on top, with a total height of 92 feet.

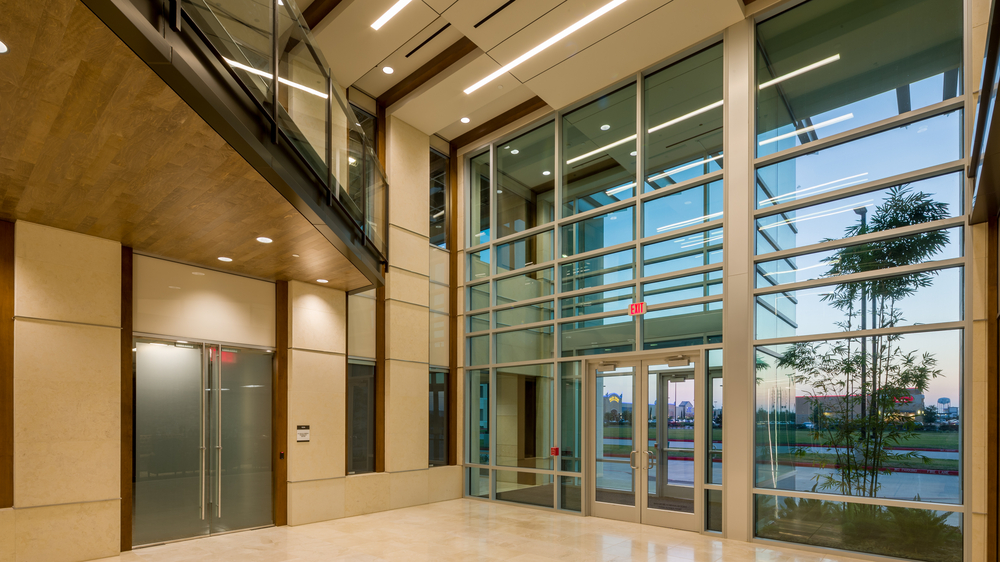

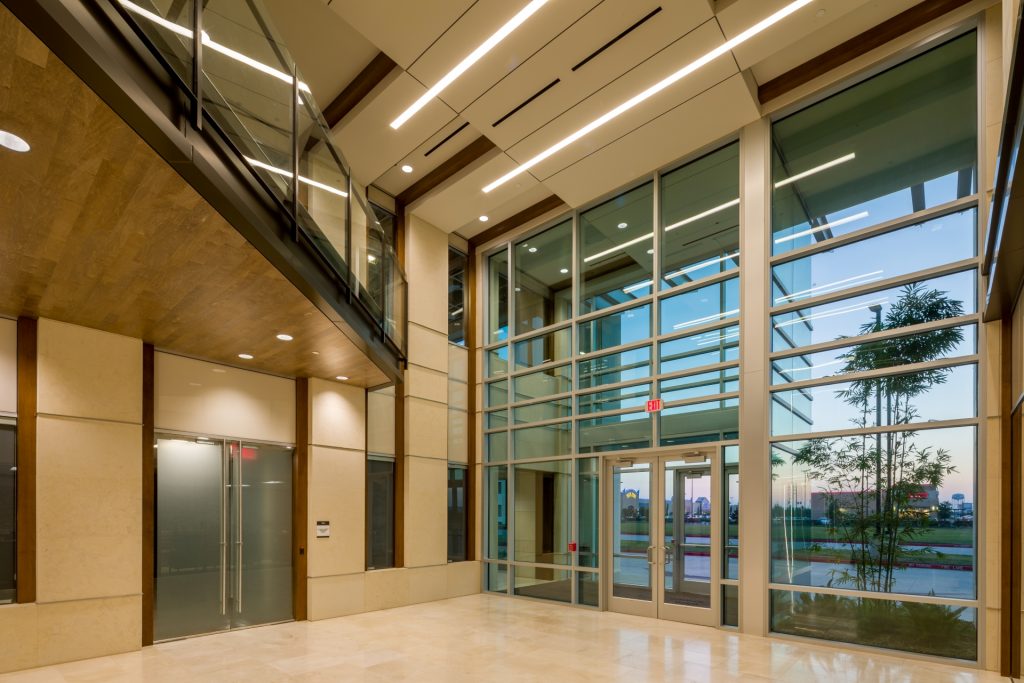

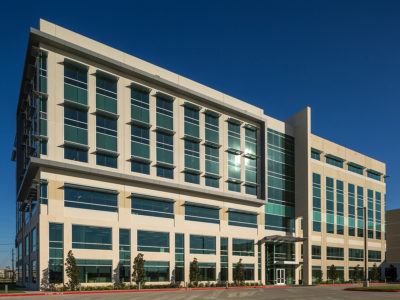

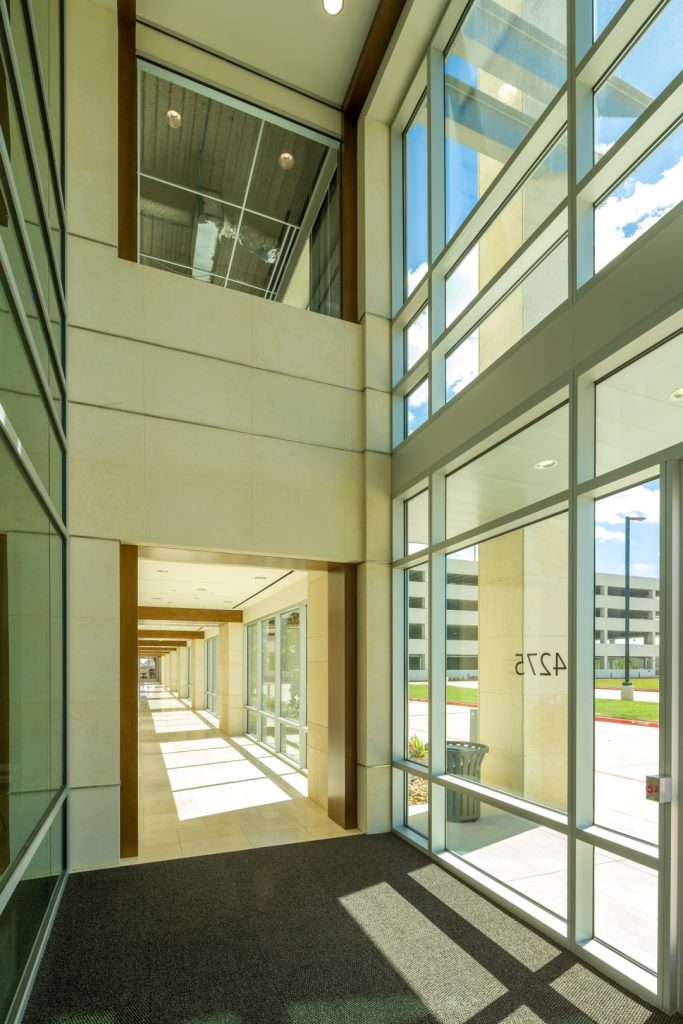

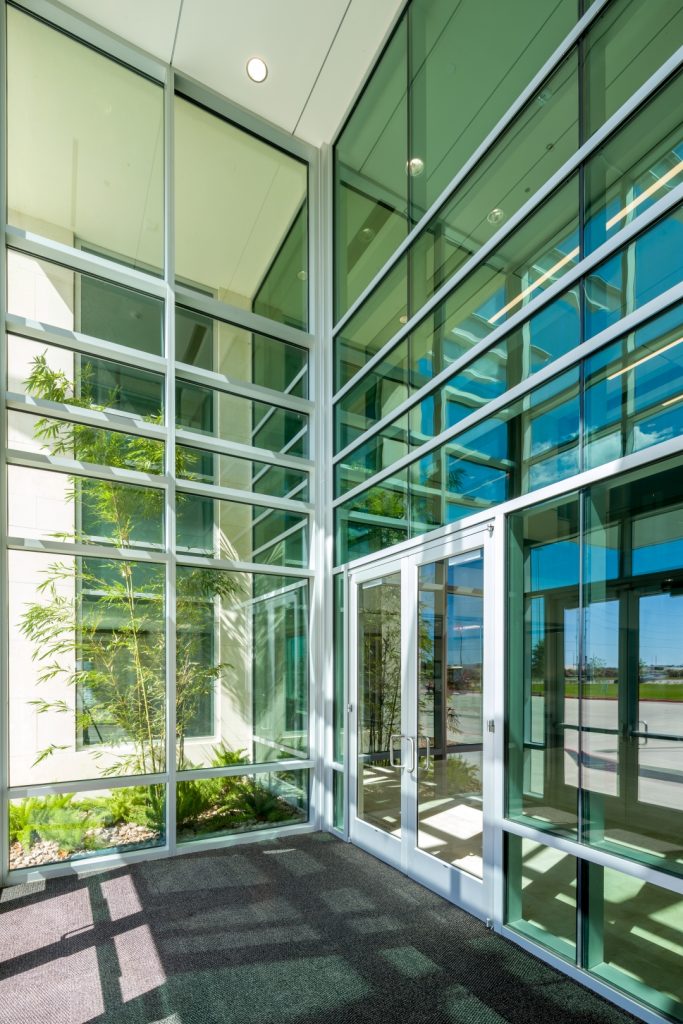

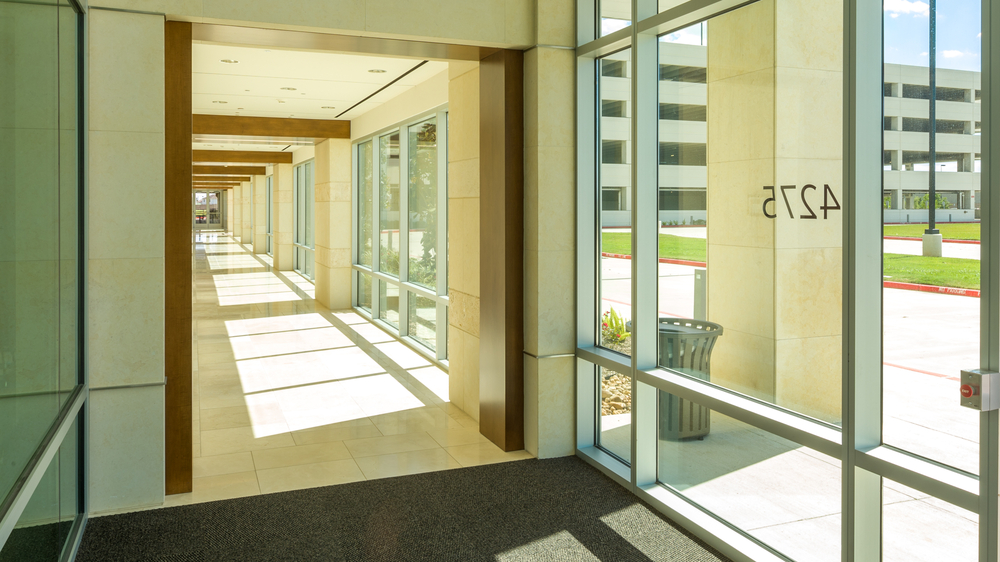

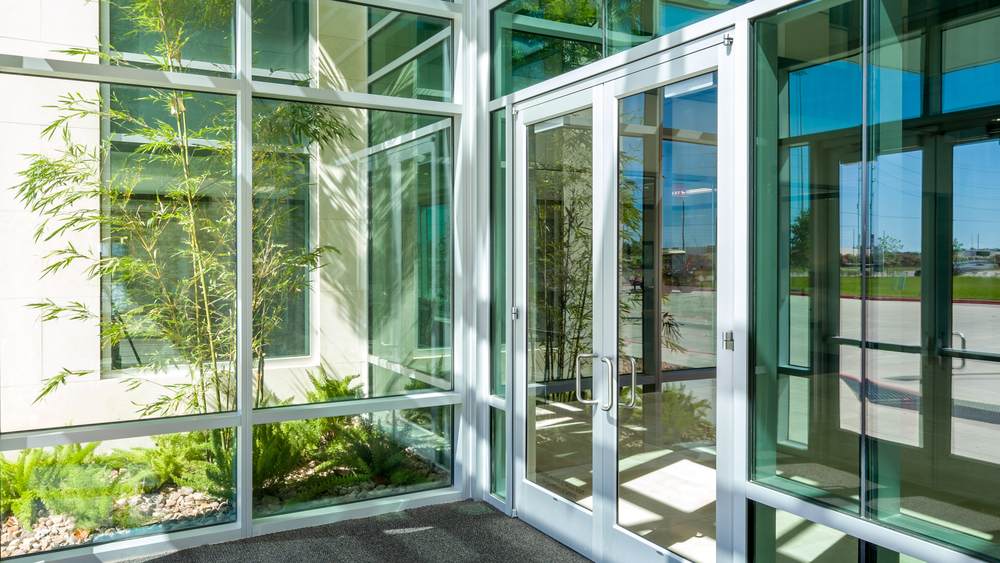

The 158,000-square-foot office is vertical in its proportions, which differentiates it from many tilt-up projects. To camouflage the regularity of the 25-foot panel joint at the building’s prominent northwest corner, the bottom 4-story panel uses a jogged panel leg at the first two floors. To further reinforce this prominent northwest corner, cut limestone was applied to these panels and a metal eyebrow feature protrudes from the face of the panels wraps the corner and terminates at the 6-story curtain wall entry feature. A ribbed finish, large amounts of glass at the corners and entryway, and sunshade elements add to the architectural appeal of this Class A office building. The interior finish is highlighted by a two-story clerestory and cantilevered second floor with glass railing.

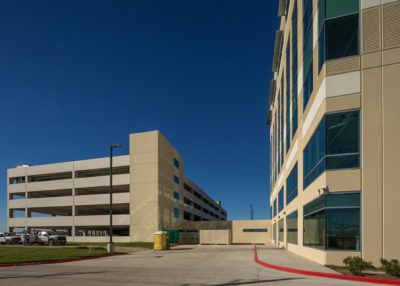

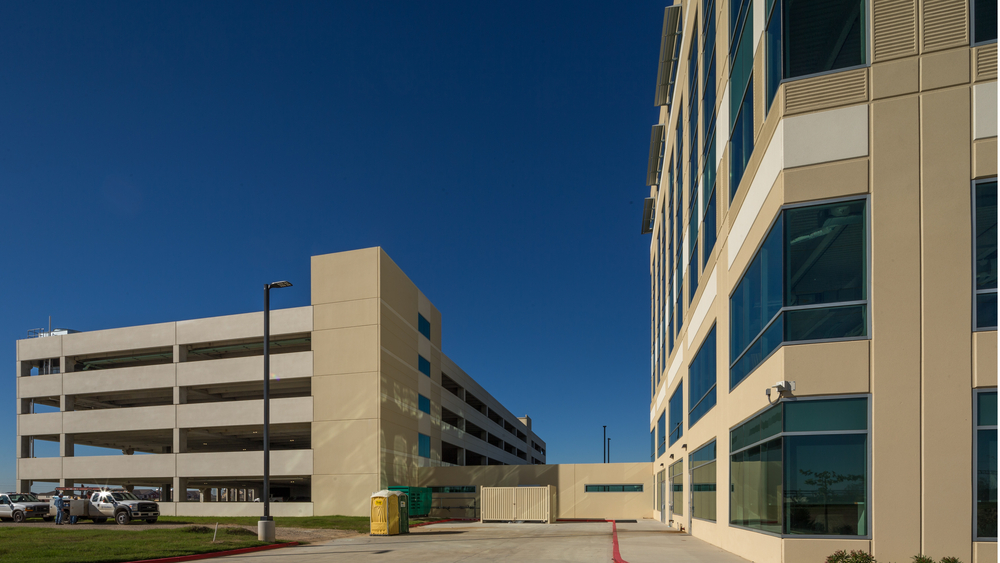

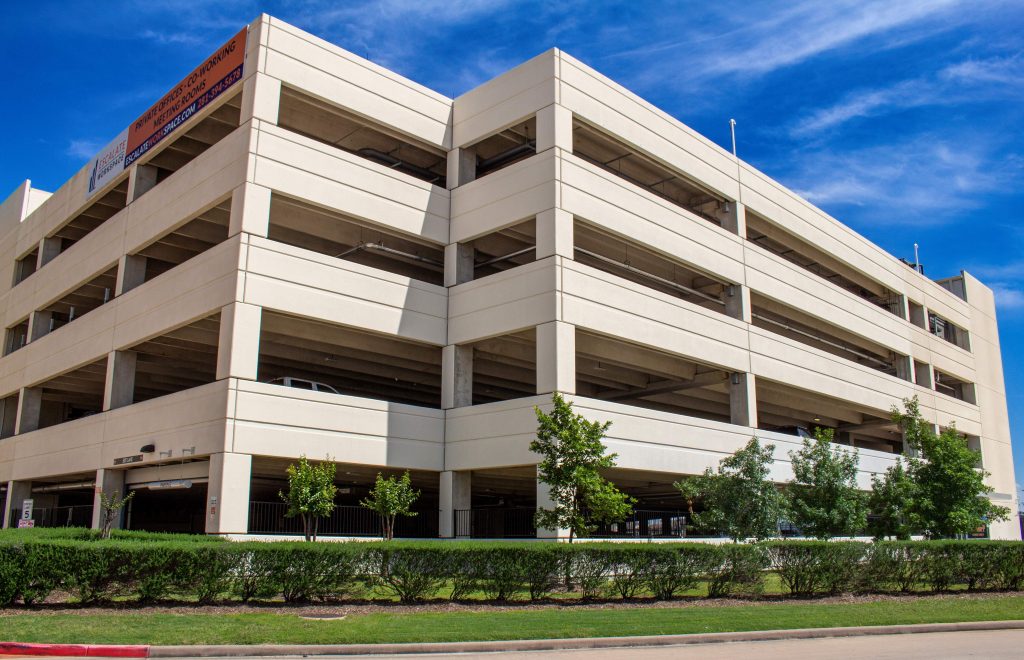

Adjacent to the office building is a five-story precast concrete parking structure designed with more than 800 parking spaces. The team designed the foundations and prepared the performance specifications for the plant-cast precast as a design build system. The garage is designed to expand in plan to accommodate the tenants of the future building.

Client
Katy Ranch Offices LP
Location
Katy, Texas

Related Projects

Yulista Redstone Gateway

Yulista Redstone Gateway

LJB provided structural engineering services for several buildings that create a…
Trinity Solar Multi-Purpose Facility

Trinity Solar Multi-Purpose Facility

LJB provided structural engineering services for this 39,000-square-foot multi-purpose building that…

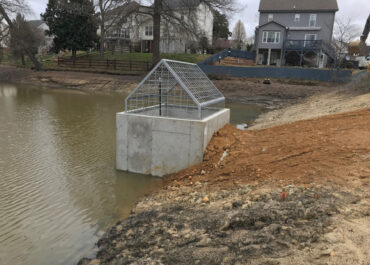

Caesar Creek Vineyards – Lake and Dam Repairs
